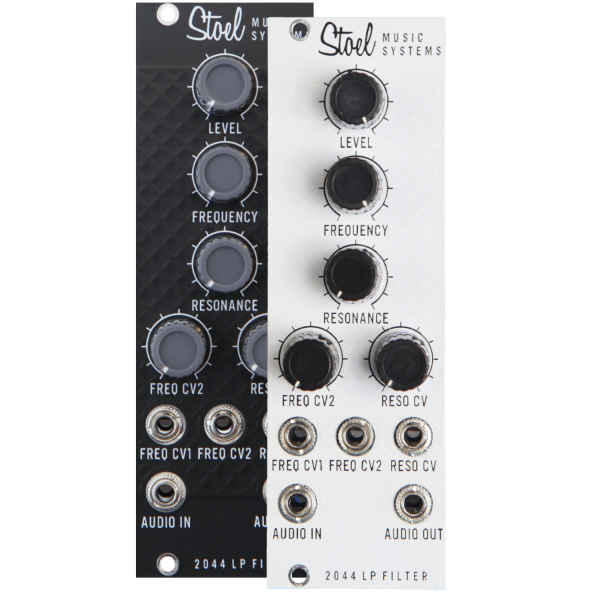

The Stoel Music Systems 2044 Filter is a classic 24db/octave analog lowpass filter with voltage control over frequency and resonance. The 2044 filter was used in the Korg Polysix, Korg Monopoly, Korg Trident, PPG Wave 2.3, the Emu Drumulator, SP-12, Emulator, the Voyetra 8, and several other vintage synthesizers.
All Stoel Music Systems modules feature aluminum front panels with a durable high-gloss white finish. For a crisp appearance and exceptional durability, the front panel markings are digitally printed at high resolution with UV-cured ink. Mounting holes are plated to significantly reduce screw rash. The power connection features polarity protection to prevent accidental damage to the module if it is connected backward.
Each module includes a 12” long 10-pin to 16-pin ribbon cable compatible with the Eurorack standard, M3 mounting screws, and a complimentary sticker.
More Information
| Color | White |
|---|---|
| +12V Current Draw | 10ma |
| -12V Current Draw | 8ma |
| +5V Current Draw | 0ma |
| Mounting Screws | 2 |
| Module Type | Filter |
| Mounting Depth | 21mm |
| HP Size | 8HP |
| Cable Required? | Yes |
| UPC | 721205474761 |
