Dual Morphing LFO

$225.00

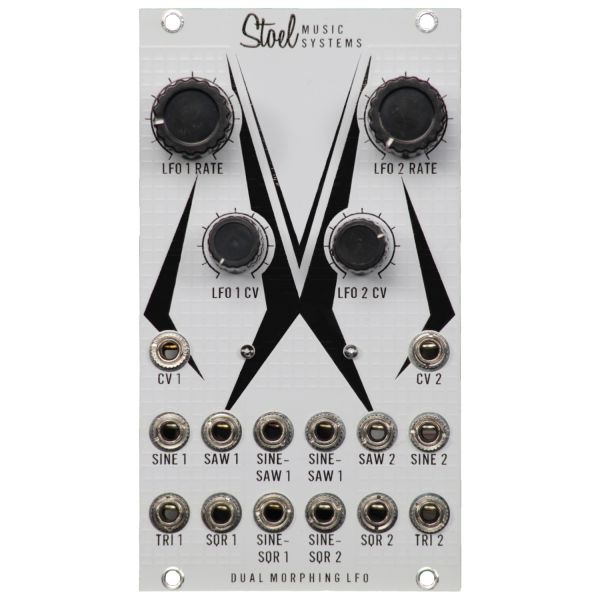

The Stoel Music Systems Dual Morphing LFO features a pair of multi-waveform voltage-controlled LFOs with cross-modulation, allowing for a wide variety of rhythmic phenomena and happy accidents.
Availability: In stock
Only 1 left
SKU
EM1214

The Stoel Music Systems Dual Morphing LFO features a pair of multi-waveform voltage-controlled LFOs with cross-modulation, allowing for a wide variety of rhythmic phenomena and happy accidents.

The speed of each LFO is controllable with CV. If the CV jacks are unused, the sine output of each LFO goes to the CV control of the opposite LFO. This routing arrangement allows the output of one LFO to modulate the speed of the other. This routing is overridden by plugging a cable into the CV jack, allowing an external CV signal to be applied. The maximum frequency is approximately 120Hz.

Each LFO has saw, square, triangle, and sine wave outputs. Additionally, each LFO has a sine minus saw waveform and a sine minus square waveform. These unique waveforms create additional sound design possibilities.

All Stoel Music Systems modules feature aluminum front panels with a durable high-gloss white finish. For a crisp appearance and exceptional durability, the front panel markings are digitally printed at high-resolution with UV-cured ink. Mounting holes are plated to significantly reduce screw rash. The power connection features polarity protection to prevent accidental damage to the module if it is connected backward.

Each module includes a 12” long 10-pin to 16-pin ribbon cable compatible with the Eurorack standard, M3 mounting screws, and a complimentary sticker.

More Information

More Information
Color White
+12V Current Draw 40ma
-12V Current Draw 45ma
+5V Current Draw 0ma
Mounting Screws 4
Module Type LFO
Mounting Depth 21mm
HP Size 14 HP
Cable Required? Yes
UPC 721205512470
