Quad VCA

As low as $97.00
The Stoel Music Systems Quad VCA features four logarithmic VCAs in one single 4 HP module. The new version 2 includes jumpers to adapt to 5V or 8V CV sources. The module also includes an internal output adjustment to control levels.
Availability: In stock
Only %1 left
SKU
EM1212-CF

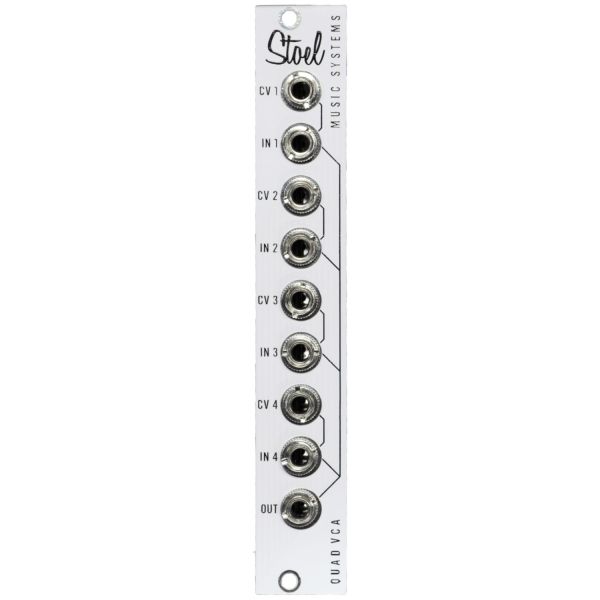

The Stoel Music Systems Quad VCA provides four logarithmic (audio) VCAs that mix to one common output in a compact 4HP module. The new version 2 includes jumpers to adapt to 5V or 8V CV sources. The module also includes an internal output adjustment to control levels.

Both the audio jacks and the CV jacks are normalled from top to bottom. If a CV signal is plugged in, and the CV jacks below it are unused, the same CV signal goes to the remaining VCAs. This applies the same VCA signal to multiple signals, such as in stereo or quad-channel configurations. Likewise, when an audio signal is plugged in, and the audio jacks below it are unused, the same audio signal is provided to the VCAs below. This configuration allows for the remaining VCAs to be used in parallel. Using two VCA channels in parallel reduces the noise floor by 3dB, and using all four channels in parallel reduces the noise floor by 6dB. Please note there will be an increase in output level when VCA channels are used in parallel.

All Stoel Music Systems modules feature aluminum front panels with a durable high-gloss finish. For a crisp appearance and exceptional durability, the front panel markings are digitally printed at high-resolution with UV-cured ink. Mounting holes are plated to significantly reduce screw rash. The power connection features polarity protection to prevent accidental damage to the module if it is connected backward.

Each module includes a 12” long 10-pin to 16-pin ribbon cable compatible with the Eurorack standard, M3 mounting screws, and a complimentary sticker.

More Information

More Information
+12V Current Draw 19ma
-12V Current Draw 16ma
+5V Current Draw 0ma
Mounting Screws 2
Module Type VCA
Mounting Depth 37mm
HP Size 4 HP
Cable Required? Yes
